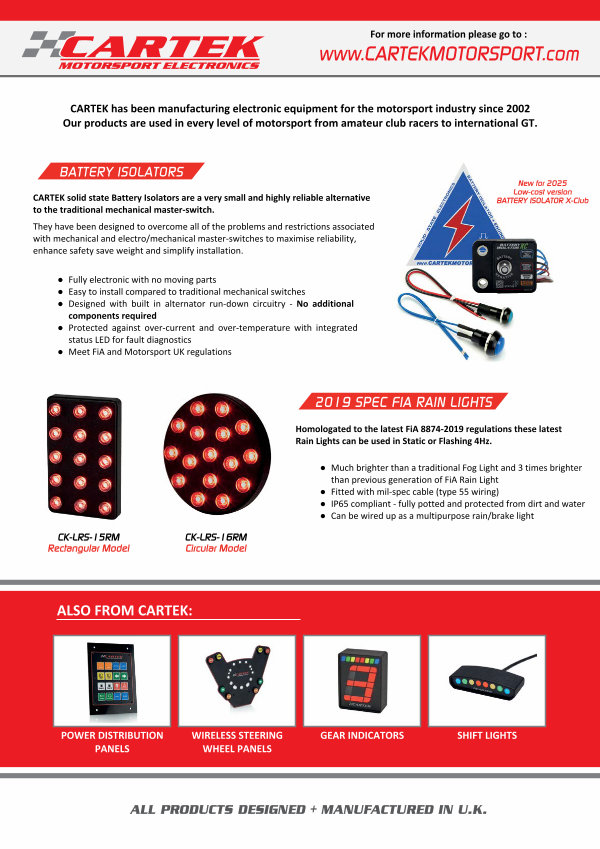

For more information please go to :

www.CARTEKMOTORSPORT.com

CARTEK has been manufacturing electronic equipment for the motorsport industry since 2002 Our products are used in every level of motorsport from amateur club racers to international GT.

BATTERY ISOLATORS

New for 2025 Low-cost version BATTERY ISOLATOR X-Club

CARTEK solid state Battery Isolators are a very small and highly reliable alternative to the traditional mechanical master-switch.

They have been designed to overcome all of the problems and restrictions associated with mechanical and electro/mechanical master-switches to maximise reliability, enhance safety save weight and simplify installation.

● Fully electronic with no moving parts

● Easy to install compared to traditional mechanical switches

● Designed with built in alternator run-down circuitry - No additional components required

● Protected against over-current and over-temperature with integrated status LED for fault diagnostics

● Meet FiA and Motorsport UK regulations

2019 SPEC FIA RAIN LIGHTS

Homologated to the latest FiA 8874-2019 regulations these latest Rain Lights can be used in Static or Flashing 4Hz.

● Much brighter than a traditional Fog Light and 3 times brighter than previous generation of FiA Rain Light

● Fitted with mil-spec cable (type 55 wiring)

● IP65 compliant - fully potted and protected from dirt and water

● Can be wired up as a multipurpose rain/brake light

CK-LRS-16RM Circular Model

CK-LRS-15RM Rectangular Model

ALSO FROM CARTEK:

POWER DISTRIBUTION PANELS

WIRELESS STEERING WHEEL PANELS

GEAR INDICATORS

SHIFT LIGHTS

ALL PRODUCTS DESIGNED + MANUFACTURED IN U.K.

CHAPTER 7 COMPETITOR VEHICLES AND VEHICLE SAFETY EQUIPMENT Appendix 5 - Electrical Systems

General

Safety for Competitors and Officials is paramount a. Wiring should be of high quality and suitable to its function. b.

Wiring and systems must be secured and well protected to reduce the risk of fire from electrical short circuits.

1. Batteries 1.1. Wet Auxiliary Batteries should be secured within a nonconductive leak-proof compartment.

1.2. Except for Racing Cars be equipped with battery, generator, self-starter, side, tail, and brake lights. All this equipment to be in normal working order. Exceptionally when taking part in an event held totally off the Public Highway, need not comply with DfT Statutory Requirements regarding lighting or horn.

1.3. Have Auxiliary Batteries duly protected to exclude leakage of acid and to protect terminals from short circuiting and producing sparks.

1.4. If located in the Driver / Passenger compartment, where a Passenger / Co-Driver is present the Auxiliary battery must be situated to the rearwards of the base of the Driver ’s or Passenger / Co- Driver ’s seat and ‘wet’ batteries must be enclosed in a securely located leak-proof container.

1.5. Have the Auxiliary Battery earth lead, if not readily distinguishable, identified by a yellow marking.

1.6. If non lead acid Auxiliary Batteries are used as the main Vehicle battery, they battery pack(s) must carry the appropriate “EC” and markings and be either a Standard Part or manufactured by an ASN registered manufacturer.

1.7. Except for Electrified Vehicles , the total quantity of recuperated energy stored in the Vehicle must not exceed 200 kJ; this energy may be re-used without exceeding 10 kJ by means of 1kW maximum.

2. Starters

2.1. If required to have a self-starter, be able to demonstrate during the Competition that it is capable of starting the engine.

3. Radio suppression 3.1. Engines must be fitted with effective radio interference suppressors.

4. High Voltage (60V+)

4.1. With the exception of ignition systems any Vehicle incorporating an electrical system which may run at a voltage exceeding 60V must display the sign detailed in Drawing 1 of this Appendix next to all Competition Numbers.

Drawing 1

5. External Circuit Breaker

5.1. The circuit breaker, when operated, must isolate all electrical circuits with the exception of those that operate fire extinguishers.

Motorsport UK 2025 National Competition Rules Chapter 7 Appendix 5 - Electrical Systems 263

5.2. Any re-set of the circuit breaker must be operated by a distinct different action to the trigger.

5.3. The triggering system for the circuit breaker on saloons should be situated at the lower part of the windscreen mounting, preferably on the Driver ’s side or below the rear window.

5.4. On Open Cars the triggering system should be situated on the lower main hoop of the Roll-over Bar on the driver ’s side or at the lower part of the windscreen mounting (as above).

5.5. Alternatively on Vehicles of Periods A to F the mounting point may be mounted approximately vertically below the line of the scuttle on the Driver ’s side.

5.6. The triggering system location must be identified by a Red Spark on a White-edged Blue triangle (12cm base), with the ‘On’ and ‘Off ’ positions and method of triggering (Push, Pull, or a Rotation direction indicated by an arrow) clearly marked.

6. Red Warning Light

6.1. A rearward facing red warning light of a minimum of 21 watts, with surface area minimum 20cm2, maximum 40cm2, or of 21 watts with a surface area minimum of 50cm2 and with lens and reflector to EU Standards, must be located within 100mm of the centre line of the vehicle and be clearly visible from the rear.

6.2. Vehicles fitted with full width bodywork may alternatively use two lights equally located about the Vehicle centre line.

6.3. An alternative light unit of equal or enhanced constant luminosity or LED lights that are either homologated by the FIA or comply with relevant EU Regulations may be used.

6.4. The warning light must be switched on when visibility conditions are reduced, or as detailed within Championship and / or Event Regulations , or when so instructed by the Clerk of the Course .

6.5. Electrically operated Fire Extinguishers Refer to App. 6.

Motorsport UK 2025 National Competition Rules Chapter 7 Appendix 5 - Electrical Systems 264

CHAPTER 7 COMPETITOR VEHICLES AND VEHICLE SAFETY EQUIPMENT Appendix 6 - Fire Extinguishers and Systems

General 1. Plumbed-In Fire Extinguisher Systems

1.1. Where a plumbed-in fire extinguisher system is required the Vehicle must be equipped with an extinguishing system in compliance with FIA Standard for plumbed-in Fire Extinguisher Systems in Competition Cars (1999) or with FIA Standard 8865-2015 or 8876-2022 (for Single Seaters ).

1.2. The system must be used in accordance with the manufacturer's instructions and with FIA Technical Lists n°16 or n°52 or n° 97.

1.3. In Rallies the minimum quantity of extinguishant for systems of FIA Technical List n°16 must be 3 kg. 1.4. For Electrified Vehicles see Appendix 11 to this Chapter . 1.5. All extinguisher containers must be adequately protected and must be situated within the cockpit.

1.6. The container may also be situated in the luggage compartment on condition that it is at least 300 mm from the outer edges of the bodywork in all horizontal directions. It is prohibited to mount bottles outside the main structure.

1.7. It must be secured by a minimum of 2 screw-locked metallic straps and the securing system must be able to withstand a deceleration of 25g.

1.8. Anti-torpedo tabs are required. 1.9. The material of the securing system must operate within the –15°C to +80°C temperature range. 1.10. All extinguishing equipment must withstand fire.

1.11. Plastic pipes are prohibited and metal pipes are obligatory (unless specified otherwise). The system must work in all positions.

1.12. The system should have two points of triggering one for the driver (and Co-driver in Rallies ) and one outside the Vehicle for activation by Marshals etc.

1.13. The Driver (and Co-Driver where applicable) must be able to trigger the extinguishing system manually when seated normally with his safety harnesses fastened and the steering wheel in place.

1.14. The triggering point from the exterior must be positioned close to the Circuit Breaker (or combined with it) and must be marked by the letter “E’’ in red inside a white circle of at least 10cm diameter with a red edge.

1.15. Extinguisher nozzles must be suitable for the extinguishant and be installed in such a way that they are not directly pointed at the occupants' heads.

2. Electrically operated Fire Extinguishers 2.1. Wiring should be of high quality and suitable to its function.

2.2. Wiring and systems must be secured and well protected to reduce the risk of fire from electrical short circuits.

3. Hand-held extinguishers

3.1. Where a hand-held fire extinguisher is required the Vehicle must be equipped with at least one fire extinguisher in compliance with Arts.3.2–3.9 hereunder or with FIA Standard 8865-2015 ( Arts.3.2–3.6 hereunder do not apply in the latter case).

3.2. Permitted extinguishants:

3.2.1. AFFF Clean Agent powder or any other extinguishant homologated by the FIA.

Motorsport UK 2025 National Competition Rules Chapter 7 Appendix 6 - Fire Extinguishers and Systems 265

FOR RACING & MOTORSPORT

FEV Fire Suppression is a UK based manufacture of high quality fire suppression systems and products for the motorsport industry. Established in 1990, and with over 30 years of expertise in developing our market leading products, we are proud to supply all levels of motorsport internationally. We are committed to innovation and reliability and ensuring that our products provide unparalleled safety in every situation.

The Next generation

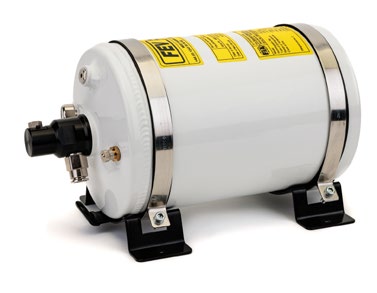

Our latest range in breakthrough fire suppression is the CF-TEC range. 2023 saw the launch of a new era of fire safety innovation. Offering the only mechanical activation and the most cost effective solution for FIA Standard 8865 Technical List 52.

»
