CHAPTER 9 COMPETITOR PERSONAL SAFETY EQUIPMENT

1. Illegal Copies Warning

1.1. Competitors are warned that despite the vigilance of the ASN and FIA and manufacturers there are a significant number of illegal copies of Homologated items offered for sale especially on the internet. These items are highly dangerous and do not conform to Homologated or other Safety standards.

1.2. Competitors should only source personal safety equipment from reputable suppliers who are authorised re-sellers for the manufacturer who has Homologated the equipment or manufactured it to an alternative recognised safety standard where permitted in Competition under the Code or the NCR. The ASN and / or FIA may demand proof of purchase.

1.3. Specific regulations concerning flame-resistant gloves, socks, balaclavas and underwear are published by the FIA and applicable to International Events.

1.4. Personal Safety Equipment Homologation Lists are freely accessible at www.FIA.com . If in doubt Competitors should contact the ASN Technical Department to arrange inspection or contact the Chief Scrutineer at an Event or if a Competitor in a Championship contact the Championship Eligibility Scrutineer.

1.5. Competitors are responsible for presenting and wearing at all times during Competition the correct legitimate Personal Safety Equipment.

1.6. The presentation and use at an Event of Personal Safety Equipment that does not conform to the acceptable standards and these Regulations is a punishable breach of the NCR (the maximum penalty is Exclusion from Motor Sport in all FIA territories and / or a fine to the maximum prescribed by these NCR) and Scrutineers are empowered to impound it.

1.7. Where illegal copies of Personal Safety Equipment are discovered at an Event it will be impounded by the Scrutineers and forwarded to the ASN who may forward to the FIA where applicable and to the manufacturer of the Homologated / Standard bearing equipment. It will be destroyed and the purchaser of it may risk criminal prosecution and / or a civil claim at the instance of the manufacturer.

2. Contamination

2.1. The ASN may depict and publish images of impounded Personal Safety Equipment without identifying the Competitor by name for the purposes of Safety education and / or training. By applying for and holding an ASN Competition Licence and Entering and Signing On at an ASN Permitted Event the Competitor acknowledges and accepts these rights of the ASN as necessary for the drive to improve Safety standards in global Motor Sport.

2.2. It is recognised by the ASN and this by all Officials and Competitors that Personal Safety Equipment may be impounded by National and local authorities.

2.3. In all cases where contamination of the helmet is suspected the advice of the Chief Medical Officer and / or ASN Technical Department must be obtained as part of the impound process. The item must only be handled wearing suitable protective clothing and following initial inspection be placed in a secure appropriately marked and sealed container.

3. Overalls 3.1. Clean Flame-Resistant overalls must be worn to cover from ankle to wrist to neck.

3.2. Exceptionally Drivers of open bodywork Period Defined Vehicles (Non-Rally ) A-D and pre-1941 three wheeled cars, may wear ACU or FIM approved leather overalls which must have a minimum thickness of 1.2mm at any part of the suit, or overalls approved by the FIA for Karting on Race Venues.

3.3. Acceptable standards:

a. For International use overalls must comply with current FIA regulations.

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 345

For FIA Standard Overalls the homologation label will be stitched into the fabric of the garment or on a sewn in label.

b.

c. Racing: FIA 8856-2018 / FIA 8856-2000 d.

Special Stage Rallies / Sprints and Hill Climbs: FIA 8856-2018 / FIA 8856-2000 / FIA 1986 Standard

e. Karting: As defined in Chapter 18. f. All Other Events (including overalls in accordance with Chapter 12 ): BS6249 part 1 Index A or B (but not part C). BSEN533 EN533:1995 Index 3 ISO 14116 FIA 8856-2018 FIA 8856-2000 FIA 1986 Standard.

4. General

4.1. As with any item of safety equipment evidence of damage or excessive wear can render it unsuitable for use. In the case of overalls this could include over frequent or incorrect washing broken seams or stitching and worn patches. Two-piece overalls should be avoided but if worn must overlap and provide flameresistant coverage.

4.2. Due to the complex nature of national test standards and variations of detailed testing it is not possible to quote ‘equivalents’ from foreign national standards unless they are FIA approved.

4.3. National test standards may be superseded by or collaborate with European norms (CE Marks) which may provide a common standard throughout Europe and may include the territories of the ASN. The Competitor must ensure that the correct equipment is used in the jurisdiction of the Competition.

4.4. Individual Competitors are responsible for ensuring their own safety and that appropriate flame-resistant overalls are worn when mandatory.

4.5. Competitors are strongly advised to wear flame-resistant gloves socks balaclavas and underwear.

4.6. Plastic or similarly combustible material in footwear is to be avoided during Competition due to risk of fire related injury.

4.7. When a name appears on a driver ’s helmet or overalls this must be the name of the person wearing them and must be in accordance with Homologated standards and / or manufacturer recommendations.

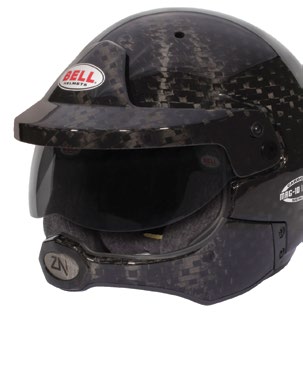

5. Crash Helmets General

5.1. Crash helmets bearing an ASN approval sticker must be worn at all times during training Practice and Competition .

5.2. The user must ensure that the helmet is to a standard currently specified and that it fits properly and is secured properly and that it is in a serviceable condition.

5.3. It is strongly recommended that a flame-resistant balaclava helmet bib or face mask also be worn

5.4. Total protection can never be given by any headgear and the most advanced and or expensive crash helmets may not entirely prevent head injury or death in a severe accident.

5.5. Helmet users must understand that helmets are deliberately constructed so that the energy of a severe blow will be absorbed by the helmet and thereby partially destroy it. The damage may not be readily apparent; it is essential therefore that any helmet receiving a blow in an accident is either replaced or returned to the manufacturer for competent inspection – this of necessity must be the responsibility of the helmet user who will have been aware of the circumstances under which the helmet was struck.

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 346

5.6. It is not possible nor indeed reasonable to expect the Scrutineer in every case to observe significant damage.

5.7. Where there is any doubt about the helmet’s fitness for its intended purpose then the Chief Scrutineer is empowered to remove the ASN Approval Sticker and impound the helmet for the duration of the Event .

5.8. Competitors must proceed on the basis that once a helmet has served its purpose it is necessary to replace it. It is the Competitor who must ensure that the helmet used is fully fit for its purpose.

5.9. The Competitor should recognise that an accident may be survived but head injuries still result having knowingly used a previously damaged helmet and that insurance may be invalidated.

6. Impounding of helmets

6.1. The ASN may depict and publish images of the impounded helmet without identifying the Competitor by name for the purposed of safety education and / or training. By applying for and holding an ASN Competition Licence and Entering and Signing On at an ASN Permitted Event the Competitor acknowledges and accepts these rights of the ASN as necessary for the drive to improve safety standards in global motor sport.

Case 1 Pre-Event:

If the helmet does not conform with the required Standards or is in a poor or dangerous condition the Chief Scrutineer will impound the helmet for the duration of the Event and remove the ASN sticker. At the close of the Event the helmet may be returned as received (except for the ASN sticker) to the Competitor concerned alternatively the Chief Scrutineer may impound the item and forward it to the ASN.

Case 2 Accident during the Event:

If the Competitor is injured and the helmet is damaged the Chief Scrutineer will impound the helmet and remove the ASN sticker then forward it to the ASN.

Case 3 Accident during Event and Competitor evacuated to hospital with head injuries:

The Chief Scrutineer will produce the helmet to the Chief Medical Officer and then will then impound the helmet and remove the ASN sticker. Unless the Chief Medical Officer wishes to retain the helmet it must be securely delivered to the ASN Technical Department.

In all cases where contamination of the helmet is suspected the advice of the Chief Medical Officer and / or ASN Technical Department must be obtained as part of the impound process. The item must only be handled wearing suitable protective clothing and following initial inspection be placed in a secure appropriately marked and sealed container.

6.2. The Competitor is reminded of the following essential criteria when buying or using a helmet:

a. Correct Standard. b. Correct Fit. c. Security. d. Condition.

7. Standards:

7.1. Helmets bearing one of the under mentioned ‘standards’ may be approved by the ASN subject to other criteria being met. See also Chapter 7 Appendix 13 Diagrams 7 , 8 and 9.

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 347

ALL MOTORSPORT UK NATIONAL EVENTS FIA 8860-2010 FIA 8859-2015 FIA 8860-2018 FIA 8860-2018-ABP FIA 8859-2024 FIA 8859-2024-ABP SNELL SA2015 (Not valid after 31.12.26) SNELL SA2020

7.2. ASN National Kart Racing Events (with exception of Kart Drivers under 15 years of age Cadet and Bambino Drivers ) and ASN National Junior Drag Racing :

FIA 8878-2024 SNELL K2015 SNELL K2020 SNELL – FIA CMR2007 SNELL – FIA CMS2007 SNELL – FIA CMR2016 SNELL – FIA CMS2016

For all International Events please refer to the FIA Regulations .

7.3. Kart Drivers under 15 years of age Cadet and Bambino Drivers :

The weight of the helmet may be checked at any time during an event and must not weigh more than 1550g or such other value as may be specified from time to time by the Code and / or the NCR:

SNELL – FIA CMR2007 SNELL – FIA CMS2007 SNELL – FIA CMR2016 SNELL – FIA CMS2016

7.4. Part of the approval procedure is to affix an ASN sticker to the outside of the helmet in the approximate location of the driver ’s right ear.

7.5. Stickers may only be affixed by selected scrutineers or by ASN Technical Officials at Motorsport UK or by selected manufacturers after the helmet has been checked for conformity with the standard required and is considered to be in a satisfactory condition.

7.6. ASN approval stickers are subject to the current fee published by the ASN and payable by the Competitor to the approving Scrutineer. Approval stickers are printed on foil and once affixed cannot be reapplied. Stickers are individually numbered.

7.7. Helmets approved for use in all disciplines require a blue ASN sticker to be affixed. Helmets which are accepted for use in kart racing only require a green or yellow as applicable ASN sticker to be affixed. These stickers are available from issuing Scrutineers subject to the fee mentioned above.

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 348

7.8. Helmet standards are regularly reviewed and updated and superseded. Standards will periodically cease to be acceptable and an element of ‘lifing’ will always remain.

8. Fit and Security: 8.1. To ensure satisfactory fit and security of your helmet proceed as follows:

a. Obtain correct size by measuring the crown of your head. b.

Check that there is no side-to-side movement; a helmet should be as closely fitting as possible consistent with comfort.

Tighten straps securely – the chin strap must always be in tension; ensure therefore that the strap cannot slip. Chin cups are prohibited.

c.

With head forward attempt to pull up the back of the helmet to ensure the helmet cannot be removed in this way.

d.

e. Ensure you can see clearly over each shoulder. f.

Make sure nothing impedes your breathing in the helmet and never cover your nose or mouth other than with a flame-resistant balaclava or face mask.

Helmets with life-support must only be worn if connected to a permitted life-support system.

g.

Never wear a scarf tie or other loose clothing which could come loose and possibly cause an accident.

h.

i.

Ensure that the visor can be opened with one gloved hand.

j.

Satisfy yourself that the back of the helmet provides protection for your neck.

k.

Do not buy from mail order unless you can satisfactorily carry out the above checks; return a helmet unused if it does not fit.

9. Condition and Care of Helmet

9.1. The user must bear the prime responsibility for ensuring that the helmet is fit for the purpose intended since significant damage to the helmet may have been sustained without this being apparent to the Scrutineer .

9.2. Anything other than minor superficial damage is likely to result in the Scrutineer removing the ASN sticker and impounding the helmet for the Event .

9.3. It is in everyone’s interest for the Competitor to buy the best helmet possible and to look after it (the best is not necessarily the most expensive). A helmet bag should always be used.

9.4. There must be no alteration to the structure of a helmet. Where a radio intercom is fitted this should only be done in accordance with the helmet manufacturer ’s instructions. Fitment of cameras to helmets by whatever means is not permitted unless an integral camera is provided by the helmet manufacturer and that model of helmet is approved under one of the accepted standards.

9.5. Use only a weak solution of soft soap and water to clean the interior and exterior of the helmet; do not get the interior too wet.

9.6. Some moulded plastic helmets although they meet approved standards can be seriously damaged by substances such as petrol paint adhesives cleaning agents and stickers (not the ASN stickers) – such damage may not always be apparent; however crazing or obvious dulling of the surface finish could indicate serious structural weakening of the helmet and is likely to result in the Scrutineer removing the ASN sticker and impounding the helmet for the Event.

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 349

10. FHR Device

10.1. It is permitted to incorporate the use of an FIA approved FHR Device fitted in accordance with FIA regulations and those below.

10.2. For ASN National Events in addition to helmets listed by the FIA as recognised for use with FHR helmets to Snell SA2015 and Snell SA2020 are accepted subject to the FHR anchorage points being marked as homologated to FIA 8858-2010.

10.3. Part of the approval procedure is to affix an ASN sticker to the yoke of the FHR device.

10.4. ASN Stickers may only be affixed by selected Scrutineers by ASN Technical Officials at Motorsport UK or by selected manufacturers after the FHR device has been checked for conformity with the standard required and is considered to be in a satisfactory condition.

10.5. ASN Approval Stickers for which a prescribed fee is payable are printed on foil and once affixed cannot be reapplied. Note: Stickers are individually numbered.

10.6. Where there is any doubt about the device’s fitness for its intended purpose then the Chief Scrutineer is empowered to remove the ASN Approval Sticker and impound the FHR Device for the duration of the Event .

10.7. The FHR Device may also be impounded by the Chief Scrutineer on the same bases as the helmet including forwarding it to the ASN .

11. Goggles and Visors

11.1. Either a visor or goggles must be worn at all times during training Practice and Competition unless in a closed Vehicle.

11.2. Recommended visor and goggles standards (minimum) are: 11.3. BS4110 BS4110:1999 BS EN 1938 European Standard 89/686/EEC. 11.4. Such other standard as may be legislated from time to time. 11.5. Visors or goggles must be clear or neutral density filters.

12. Heat and Flame-Resistant Clothing

12.1. Where appropriate and required by specific regulations the FIA standard is shown below as detailed in FIA Code Appendix L . These standards are advised for all Competition use where protective clothing is either mandatory or recommended.

12.2. Underclothing . Materials tested to ISO 6940 or homologated to an FIA standard for protective clothing for automobile Drivers. An indication of this should appear on the front of the upper garment which must cover the neck.

12.3. Balaclavas . Materials tested to ISO 6940 or homologated to an FIA standard for protective clothing for automobile Drivers . All the part seen in frontal projection when worn must consist of at least 2 layers of minimum 180 gr/m2 each. The bottom of the balaclava to meet the requirements in Art.12.10 below .

12.4. Socks . Materials tested to ISO 6940 or homologated to an FIA standard for protective clothing for automobile Drivers . Socks to be half hose (to mid-calf) and made from at least one layer minimum 180 gr/m2.

12.5. Shoes . To cover the whole foot and ankle. Materials tested to ISO 6940 or homologated to an FIA standard for protective clothing for automobile Drivers and fastenings and laces to be of non- fusible material. Soles to be manufacturer certified as resistant to hydrocarbons and to flames. Thread used to be flame-resistant. Manufacturers to register all shoe models with the ASN and FIA .

12.6. Gloves . Materials tests to ISO 6940 or homologated to an FIA standard for protective clothing for automobile Drivers . Each glove to be labelled to that effect. Backs of gloves to be made from at least two layers of 180 gr/m2. Thread must be flame-resistant and non-melting. Gloves must be fitted at the wearer ’s wrist and cover the cuff of the wearer ’s overalls. Manufacturers should register all glove models with the ASN and FIA .

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 350

12.7. Where ASN / FIA regulations specify the wearing of protective clothing the labels on overalls and upper underclothing may be verified by the Organisers for compliance with regulations.

12.8. Exceptionally Drivers of Period Defined Vehicles (Non Rally) A-D and pre-1941 three wheeled Vehicles may wear ACU or FIM approved leather gloves and shoes which must have a minimum thickness of 1.2mm at any part of the garment or gloves and shoes approved by the FIA for Karting at Race Venues.

12.9. Wearers are warned of the particular vulnerability to fire of head neck wrists and ankles. Ankles and wrists should always be covered by at least two items of protective clothing

12.10. Balaclavas must extend to enter inside the overalls or undergarment around the neck and not come free whichever way the head is moved.

12.11. Upper undergarments should have a polo style neck

FREE

VOUCHER

Open 7 days a week ( closed Sundays Oct to February )

Silverstone Technology Park , Silverstone , NN12 8TN 01327 855585

Motorsport UK 2025 National Competition Rules Chapter 9 - Competitor Personal Safety Equipment 351

Circuits & Venues

CHAPTER 10 - CIRCUITS & VENUES

The following Appendices apply in this Chapter: App.1 Regulations for Track Licences and Track Licence Applications . App.2 Specific Regulations for Race and Speed and Temporary Drag Strip Events . App.3 Specific Regulations for Marshals Posts. App.4 Medical Facilities – Fire Precautions and Equipment – Emergency Rescue Vehicles at Race Circuits. App.5 Specific Regulations for Scrutineering Areas. App.6 Regulations for Endurance and Night and Bad Weather Racing. App.7 Guidance Notes on Dealing with Oil.

This Chapter by its Appendices governs permanent and temporary Race Circuit Venues and other fixed or temporary Venues used for Race, Speed and Rallycross and where stated to Drag Race Venues .

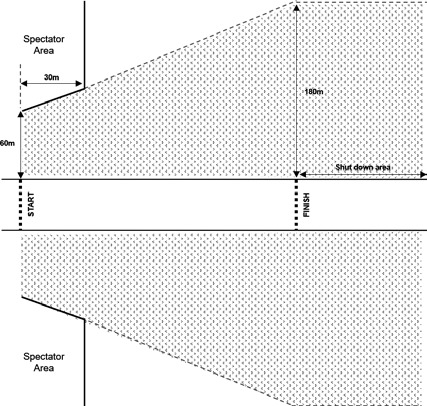

For temporary Drag Race strips specific provisions for shut down distances depending on length of course and other safety requirements are provided at App.1 and App.2 of this Chapter.

This Chapter must be read together with Chapter 11 regarding Emergency and Medical Services .

All Venues must hold a Track Licence issued by the ASN and for International Events a Track Licence issued by the FIA but applied for through the ASN .

It is strongly recommended that land-owners or developers discuss their outline plans for any new racing circuit with ASN before any construction begins. This is to ensure compliance with ASN and governmental safety standards, and

race organising facilities which ASN may require under the NCR . 1.

1.1. In the interests of safety, animals should not be admitted to Race , Speed or Kart venues, but if present they must be secured inside a vehicle or building whenever Practice or Competition is taking place, working dogs excepted.

2. Welfare

2.1. At permanent motorsport Venues the Venue operator should ensure that adequate sanitation is provided and available for Officials, Competitors and spectators in accordance with local authority guidance.

2.2. At non-permanent Venues the requirements of Art.2.1 are the responsibility of the Organising Club . 2.3. It is recommended that marshals and Officials follow the guidelines below:

c. those in the proximity of gravel traps should wear protective glasses to protect from flying debris

a. b.

motorsport can create unavoidable restricted levels of noise hence ear defenders or ear plugs which do not impede the ability to carry out tasks should be used.

in certain areas such as the pits hard hats should be used

Motorsport UK 2025 National Competition Rules Chapter 10 - Circuits & Venues 353

CHAPTER 10 CIRCUITS & VENUES Appendix 1 - Regulations for Track Licences and Track Licence Applications

Regulations for Track Licences

1. General

1.1. ASN Track Licences may be issued to the owner or operator of a Course . Where the Licence Holder is not the owner a written agreement must exist between the owner and the prospective Licence Holder setting out the responsibilities of each to ensure that all requirements of the Licence are met. The ASN has the right to call for a copy of all such agreements.

1.2. ASN Track Licences are issued subject to the conditions contained within them. 1.3. The ASN can refuse to grant or withdraw a Track Licence at any time without stating a reason.

1.4. The holder of an ASN Track Licence must at all times cooperate with the ASN in connection with all matters pertaining to the Track Licence .

1.5. The organisation of an Event must not be announced or advertised until a Track Licence has been agreed by the ASN . Should an unauthorised Event be held on any licensed Course the Licence may be revoked and the ASN may decline to issue any further Track Licence .

1.6. A current Track Licence (or a photocopy) must be displayed in a prominent position at the Track or be available for inspection in the case of a temporary Track .

1.7. The Licence is only valid for the days on which a the ASN Event Permit has been issued and shall have no validity on days when the ASN Permit is not in force.

1.8. Track Licence fees are provided in Chapter 1 App.2.

1.9. The Clerk of the Course shall always have full control of the Course (including Pits and Paddock ) and all areas between the Course and Enclosures from the commencement of Practice until all competing Vehicles have left the Course at the conclusion of the Event .

1.10. All Events will be run in the direction specified on the Track Licence .

2. National Track Licence

2.1. The ASN can grant a National or Interclub Track Licence to a Race Circuit or Speed Event Venue including Rallycross Venues for an individual Event or a series of Events or if the Track is a permanent one until the end of the current year.

3. International Track Licence

3.1. Application for an International Track Licence for a Race Circuit or Speed Event Venue must be made to the FIA through the ASN .

3.2. The FIA can licence a Track for a stated period and after consultation with the ASN can refuse to grant or withdraw an International Track Licence applicable in the UK at any time and without stating a reason.

4. Safety Requirements

4.1. In issuing a Licence the ASN will specify the types of Vehicles which can compete and the maximum number which can start simultaneously in any one Race .

4.2. The number of Vehicles permitted on the Circuit at any one time for practicing including Qualifying Practice must not exceed the number permitted in a Race by more than 20% without prior written approval.

4.3. Except in the case of handicap Events where each Vehicle will be allocated a suitable area at the discretion of the ASN Timekeeper the starting grid shall be laid out in accordance with the ASN Track Requirements which can be obtained from the ASN Safety Department .

4.4. The Start / Finish Line and where applicable the grid positions shall be clearly marked on the road surface. 4.5. The Track must be in good repair and kept thoroughly swept as necessary during the Event .

4.6. The Course must not present any unreasonable hazards to either Competitors or spectators. The width of the Track normally shall not be less than 9m for Race Circuits and 3.5m for Sprints and Hill Climbs .

4.7. When there are no natural features defining corners (eg on airfields) they must be marked out by signs indicating distance to the corner.

4.8. The siting of all cameras other than in ASN Approved Enclosures is not permitted.

4.9. Aircraft and or helicopters under the control of the Event Organisers must never be allowed to operate below 500ft except during scheduled take-off and or landing nor at any time fly directly over the venue while motor sport is in progress.

4.10. Drones under the control of the Organisers or any permitted third party must have ASN Approval and be operated in accordance with the Civil Aviation Authority (‘CAA’) Drone and Model Aircraft Code. The ASN Drone Policy is published on the ASN website.

4.11. Further special safety precautions must be complied with before a Licence will be issued for a Circuit to be used for Truck Racing .

5. Communications

5.1. There must be an efficient means of communication (either visually by telephone or radio) between the Clerk of the Course , Observers , First- Aiders and other staff unless otherwise specified in the Track Licence . There must be a radio link (not CB) to all emergency vehicle(s).

6. Timing Facilities

6.1. At permanent Race Circuits an adequate sheltered area (the Timing Box ) must accommodate at least one ASN Licensed Timekeeper for every four cars permitted on the Track for Practice plus a further three assistants.

6.2. The Timing Box must provide an adequate view of the Track and the start / finish Signals and the start / finish line.

6.3. In the case of new Circuits the position and design of the Timing Box must comply with the specification laid down by the ASN .

6.4. At all other Venues including temporary ones Timekeepers must be provided with adequate covered accommodation for themselves and their equipment.

7. Moving Image Facilities

7.1. To be granted a Track Licence all fixed Venues should have digital recording facilities to cover all areas of the Track . The current specification of this equipment can be obtained from the ASN Safety Department .

7.2. Following any incident involving injury serious damage judicial proceedings and when otherwise appropriate the Owner and / or Operator of a Venue having moving image facilities shall:

a. Retain any moving image recording relating to the incident for at least 31 days after the incident. b. Upon a written request by the ASN provide the original of the recording requested. c.

Keep the copy of the recording requested by the ASN until notified in writing by the ASN that the keeping of the copy is no longer required.

8. Bridges

8.1. All bridges over the Track must be of substantial construction approved by a qualified construction engineer and both the bridge and its approaches must be shielded to eliminate all view of the Track from these areas.

8.2. No people or vehicles are permitted to stop on a bridge while any Practice or racing is in progress.

8.3. The floor and sides of each bridge must be constructed so that no object can fall from the bridge onto the Track .

8.4. Bridges must have sufficient clearance above the Track to allow passage of emergency service vehicles and where applicable Race Trucks .

9. Temporary Drag Race Strips – Shut Down Distances 9.1. The following are the minimum distances per course length:

a. 1 mile 1200 metres b. 0.5 miles 700 metres c. 0.25 miles 400 metres d. 0.125 miles 250 metres

Regulations for Track Licence Applications

10. ALL APPLICANTS MUST CHECK CURRENT REQUIREMENTS WITH THE ASN SAFETY DEPARTMENT BEFORE MAKING ANY APPLICATION

11. All Applications must be made on the Application form(s) provided by the ASN on written Application to the Safety Department.

12. The minimum information required by the ASN for issuing a Track Licence is: 12.1. Racing Circuits and Rallycross Courses. Outline plans and ASN Inspector ’s report. 12.2. Other Speed Event Courses. 1/2500 scale plan and ASN Inspector ’s report.

13. The following information is also required:

13.1. Length of course and position of start and finish and method of marking. 13.2. Position of paddock and pits (if any). 13.3. Siting of spectator and Official Enclosures and distance from course. 13.4. Type of fencing around Enclosures. 13.5. Type and siting of protective barriers between course and Enclosures.

13.6. Siting of ambulance(s) rescue vehicles first aid headquarters and medical staff and minimum number of staff and ambulances.

13.7. Siting of Flag Marshals and Observers and minimum number of these Officials. 13.8. Siting of fire equipment and breakdown vehicles and minimum provision. 13.9. Siting of Clerk of the Course’s Headquarters, Timekeeping Box and Scrutineering area. 13.10. Locations and type of communications system around course available to Officials. 13.11. Location of nearest outside telephone and number. 13.12. Address and telephone of nearest hospital available to receive casualties. 13.13. Number of starters and types of Vehicle. 13.14. Any special features of course including type of road surface and width. 13.15. The braking area (in the case of speed events).

13.16. An outline of the estate or grounds on which the Track or course is situated, marked with the position of any footpaths or bridleways which may pass on or near the estate.

13.17. The location and operation of any trackside flashing Light Panels .

13.18. The presence of any structure or obstruction including advertising material adjacent to the Track and which could be the first object to be struck by a Vehicle leaving the course shall be subject to the prior approval of the ASN.

13.19. Specification details of the Venue Moving Image Recording facilities.

CHAPTER 10 CIRCUITS AND VENUES Appendix 2 - Specific Regulations for Race and Speed and Temporary Drag Strip Events

1. Race and Speed Events

1.1. Only competing Vehicles are allowed on the Track / Course during an Event except as instructed by the Clerk of the Course to deal with a serious emergency when Flag Marshals must warn competing Drivers . The Clerk must be satisfied that the Driver of any Vehicle allowed on the Track / Course knows the Track / Course Regulations in operation.

1.2. The recommended positioning of Emergency Vehicles will be indicated on the Track Licence should one be issued. For Events running without a Track Licence the recommended positioning of any Emergency Vehicles should be indicated in the Event Regulations .

1.3. The holder of the Track Licence is responsible for maintaining a register of best performances achieved on the Track and a permanent medical record book detailing all incidents involving injury.

1.4. Circuit and Venue owners must inform the Local Environmental Health Officer of any serious incidents (see RIDDOR 95 or contact the ASN Technical Department ).

2. Enclosures

2.1. All Enclosures at Race Circuits must be protected by a substantial barrier capable of preventing a car entering that Enclosure and preventing access from any Enclosure to the Track by any unauthorised person.

2.2. Enclosures at Speed Events (if permitted at all) not protected by a permanent barrier must be a minimum 60m from the edge of the Course unless otherwise authorised by the ASN . Adequate measures must be taken to prevent access from any Enclosure to the Track / Course . The ASN may impose conditions on any Event Permit granted.

2.3. Spectators shall be allowed at corners only when there is ASN approved protection between them and the Track / Course and preventing any access to the Track / Course by any unauthorised person.

2.4. In special circumstances the protection at Art.2.3 above may be given by multiple rows of securely banded tyres straw bales and / or or other material approved by the ASN .

2.5. Any place where spectators may congregate (eg grandstands the start and finish line opposite the pits etc) shall be protected by a substantial barrier capable of preventing a car entering that place / Enclosure and preventing access from such place / Enclosure to the Track / Course by any unauthorised person.

2.6. Ideally there should be a clear space of at least 6m between any barrier and the spectators.

2.7. Where practicable there should be a verge of at least 3m between the edge of the Track / Course and any safety barrier.

2.8. No vehicle parked in a spectator Enclosure should be less than 10m from the front of the Enclosure .

2.9. If an unauthorised person or persons penetrate beyond the authorised Enclosure the Event programme must be suspended until they have been removed.

3. Race Events

3.1. At Race Circuits all posts for Officials outside of the pits and normal Enclosures shall be adequately protected and provide dry hard standing.

3.2. Each post should have an Observers’ ‘hut’ from which to observe write reports and telephone Race Control .

3.3. There should also be a weatherproof area in which Marshals can place their bags etc and which could be used for storing post equipment brooms suitable absorbent material or neutraliser etc.

3.4. The following equipment is recommended (as appropriate ) at Race Events (minimum flag and panel size as provided in Chapter 12 .

3.5. At each Marshal ’s post:

a. b. c. d.

Two brooms Two shovels One container minimum 3 litres of suitable oil absorbent material

At least 3 fire extinguishers each containing not less than 6kg of extinguishing product suitable for extinguishing Vehicle fires

e.

One hazard board f. One Safety Car Board (SC in black 40cm high on white background) g.

A mechanism suitable for displaying the hazard and safety car boards h. The following flags or a light board able to display the equivalent Signals : i. ii. iii. iv. v. vi.

One green flag One white flag One blue flag Two yellow flags One yellow and red flag One red flag vii. One purple flag (if required).

3.6. At the Start / Finish post, as above plus the following flags or a light board able to display the equivalent Signals :

a.

National flag b. Black & white diagonally split flag (or panel) c. d. e.

Black flag or panel with orange disc Black flag or panel Black / white chequered flag

The following boards:

f.

1 2 3 5 and 10 minutes

i.

ii.

5 and 30 seconds

iii.

Start delayed

iv.

Wet Race / Qualifying session

5 second penalty

v.

vi.

10 second penalty

1 minute penalty

vii.

viii. Stop engines

Rear lights on

ix.

Number board to show Competitor ’s number (white on black up to three figures)

x.

Stop / Go Penalty

xi.

Drive Through Penalty

xii.

4. Speed Events 4.1. There should be sufficient Marshals at each main post. The minimum equipment required is:

a. b. c. d.

One stiff broom One shovel One container minimum 3 litres of suitable oil absorbent material

At least two extinguishers each containing not less than 6 kg of extinguishing product suitable for extinguishing Vehicle fires.

5. Temporary Drag Strips

5.1. For temporary Drag strips if there are no protective barriers available Drawing 1 applies and the spectator Enclosures at the Start Line are to be sited 60m from the edge of the Course fanning out to at least 180m from the edge of the Course at the finish line. Spectator viewing is restricted to within 30 metres from the start line.

6. DRAWING 1

CHAPTER 10 CIRCUITS AND VENUES Appendix 3 - Specific Regulations for Marshals Posts

1. Marshals’ Posts

1.1. Officials ’ Posts equipped in accordance with App.2 of this Chapter must be established and maintained in accordance with the ASN Track Licence sufficient to ensure that the whole of the course is kept under observation at all times.

1.2. Each Post must be able to communicate by sight with the preceding and following one. If it is appropriate then relay posts will be specified to fulfill this condition. The distance between consecutive posts (disregarding relay posts) should not exceed 500m.

1.3. There should be sufficient Marshals at each post to carry out signaling intervention and surveillance duties during Practice , Qualifying and Racing .

1.4. Light Panels may be installed to supplement or replace flag signals. 1.5. The location of these Light Panels around the course will be subject to prior approval by the ASN .

1.6. In its discretion the ASN may for specified Competitions sanction the use of Light Panels in substitution for any Marshals Post .

1.7. Where there is closed-circuit TV surveillance of the course the lights and or Light Panels at Arts.1.4–1.5 above may be operated from Race Control .

1.8. Where there is no closed-circuit TV surveillance the Light Panels at Art.1.6 above shall be operated from the Observers ’ posts.

Motorsport UK 2025 National Competition Rules Chapter 10 Appendix 3 - Specific Regulations for Marshals Posts 361

CHAPTER 10 CIRCUITS AND VENUES

Appendix 4 - Medical Facilities – Fire Precautions and Equipment – Emergency Rescue Vehicles at Race Circuits

This Appendix must be read together with Chapter 11.

1. Medical Facilities at Race Circuits (See Chapter 11) 1.1. Each permanent Circuit shall have a Circuit Medical Committee consisting of:

a. A representative of the Circuit management. b. A fully registered medical practitioner appointed by the Circuit . c. A representative from the local First-Aid Organisation.

1.2. The Committee is responsible for organising a Medical Headquarters and supervising the supply and safekeeping of the medical equipment specified in these Regulations .

1.3. The Committee must have a formal procedure to be followed in case of a major accident and to be part of the ASN Serious Incident Response Protocol .

1.4. The names of Committee members together with the name of the person responsible for the medical arrangements at the Circuit shall be notified to the ASN which has the overriding authority to approve Medical Centres and adjudicate on their compliance with the requirements of motor sport.

2. The Medical Centre

2.1. The Medical Centre should have easy and level access for ambulance and stretchers must offer security from press and public and be located in accordance with CAA requirements to allow helicopters to be used when necessary.

2.2. The Centre should consist of a minimum of three rooms of sufficient size and with adequate heating and lighting:

a. A resuscitation room capable of taking at least two patients at the same time. b.

An observation ward capable of containing two recumbent patients with total security in the event of death.

c. A treatment area for small dressings and other minor procedures.

2.3. There should also be an administration area and shower washing and toilet facilities contained within the Medical Centre .

3. Fire Precautions and Equipment

3.1. All fire extinguishers used at Race and Speed Events must have a valid manufacturer ’s (or agent’s) Certificate confirming they are in working order issued immediately prior to the start of each season’s racing.

3.2. This Certificate must be available for inspection by the Stewards of the Event .

3.3. At Race Events manned Fire Posts (equipped as required by App.2 Arts.3.4 and 3.6 ) must be located and clearly marked at intervals round the Circuit . Other acceptable extinguishers may be deployed at unmanned posts or by mobile units.

3.4. Additional extinguishers should be located:

At marked points in the paddock In the pit areas

a. b.

c. d.

At the Scrutineering Bay In every medical room or Centre

3.5. In Events involving the refuelling of Vehicles where more than five gallons should this now be Litres of fuel is held in any one pit there must be two fire tenders and crew in attendance appropriately equipped and with immediate access to the pit area.

3.6. A Large Spill Kit is to be provided in all Paddock areas.

4. Emergency Rescue Vehicles and Equipment

4.1. Licensed Rescue Vehicles must comply with the Specifications detailed in Chapter 11 . The positioning of emergency vehicles must be indicated on the Track / Venue Licence and except only in emergency or Force Majeure circumstances may only be varied with the prior permission of the ASN Safety Department .

CHAPTER 10 CIRCUITS AND VENUES Appendix 5 - Specific Regulations for Scrutineering Areas

1. Scrutineering Area 1.1. The minimum facilities for Scrutineers are as follows:

2. Race Events

2.1. Covered accommodation adequate for the inspection of two Vehicles simultaneously and the handling of their relevant documentation.

2.2. Satisfactory facilities for inspecting the underside of a Vehicle .

2.3. Whenever Vehicles with weight limitations are competing fixed location weighing equipment must have not less than annual Weights and Measures certification (January - December) and such Certification must be present at the Event and prominently displayed at the weighbridge.

2.4. When weighing is carried out with portable electronic ‘pad’ scales a current Weights and Measures Certificate is not essential but if a Certificate is not available at the Event then the scales must be checked prior to use or upon request by the Stewards of an Event by means of certified weights compatible with the range of Vehicles to be weighed. If there is any deviation from standard as-checked then all Regulatory weighing must cease and the equipment must be rectified and certified before next use. Such deviation must be reported on the Steward ’s Report to the ASN immediately following the relevant Event .

3. All Events 3.1. A clear flat area, large enough for a Vehicle to stand on. 3.2. An area for Noise tests that ensures conformity with the requirements of the ASN .

3.3. A suitable area for Parc Fermé / Pits / Paddock . Note: Organisers have the right to designate any suitable area as Parc Ferme including if applicable any Competitor ’s awning or garage.

3.4. Any pit lane must be separated from the Track / Course by a substantial barrier which must provide ample entrance and exit for single Vehicles .

3.5. The area between the barrier and the pits must be at least 6.5m (and preferably 8m) in width.

3.6. The working area in front of the pits (which must be at least 2.5m wide) must be marked by a white line at least 10cm wide extending the length of the pits.

3.7. The front of the pits must be of substantial construction and each pit must be at least 4m long. 3.8. There shall be an adequate number of pits for the Vehicles in a Race . 3.9. The pits and pit lane at any new Circuit must comply with current FIA and or ASN requirements.

Motorsport UK 2025 National Competition Rules Chapter 10 Appendix 5 - Specific Regulations for Scrutineering Areas 364

CHAPTER 10 CIRCUITS AND VENUES Appendix 6 - Regulations for Endurance and Night and Bad Weather Racing

1. General 1.1. Organisers are free not to record individual lap times in practice or during a Race .

1.2. If times are not recorded for Practice starting grid positions may be based on engine capacity (with larger capacity Vehicles at the front) or by the methods described in Chapter 12 .

1.3. There must be provision for crossing the track by bridge or tunnel to access pits and paddock as follows:

a.

For vehicles and pedestrians if any Race is to run continually for more than six hours b. For pedestrians if any Race is to be run continually for more than an hour.

1.4. Accommodation for Timekeepers must be adequately heated and ventilated and provide full visibility through windows. There must be adjacent lavatory facilities if any Race is to run continually for more than half an hour.

1.5. All Senior Officials must have named ASN Licensed Deputies who are able to take appropriate action in the absence of the Official concerned.

1.6. There must be proper liaison with local residents and authorities before any Race extends over church hours or into darkness.

1.7. No snatch operations may take place during the hours of darkness unless the Race is under the control of a Safety Car .

2. Marshals

2.1. Marshals must be relieved after six hours of continuous racing, following which they should operate in shifts of maximum six hours, with one shift on and one off.

2.2. Off-duty Marshals should be provided with at least one hot meal, kept dry, comfortable and, if appropriate, provided with warm rest accommodation with individual sleeping facilities for at least six hours out of their off-duty period.

2.3. Transport must be provided for Marshals if they are required to walk more than 500m to reach rest and refreshment facilities.

3. Lighting at Night

3.1. Where Racing takes place at night an area of Track including the Start and Finish Line appropriate to the speed of competing Vehicles at that point must be lit sufficiently to enable the positive identification of each competing Vehicle .

3.2. For safety there must be a build up to and run down from the area of maximum intensity of lighting which should be at a level at least equal to that of the headlamps of competing Vehicles .

3.3. All lighting installations and other equipment must:

c. not distract the competitor in any way, in particular by reason of shadow or dazzle and

a. b.

be set out in accordance with proposals agreed in writing by the ASN and which were submitted to the ASN at least 30 days prior to the date of the Event and

be available in full working order for inspection by the ASN prior to the Event allowing adequate time for adjustments to be made if necessary.

4. General provisions 4.1. The pit area shall be lit sufficiently to enable control and replenishment to proceed.

4.2. The paddock area, spectator walkways, car parks, offices etc., shall all to be lit to ensure safety.

4.3. The Track itself shall be identified by reflectors placed at both Track edges at intervals of 5m from the 60m point before all corners until 60m past the end of the corner.

4.4. Corner warning boards shall carry reflecting markings.

4.5. All Ambulances , break-down vehicles and Official cars shall be identified with a reflective strip at the rear and a blue or yellow flashing beacon.

4.6. All Flag Marshals shall have two yellow Signal lights (one as standby) incorporating a control giving steady or interrupted lighting.

4.7. The Clerk of the Course shall have a red Signal light available. 4.8. Each Observer shall have two hand lamps, unless at a point with permanent lighting. 4.9. Scrutineers and Timekeepers shall have sufficient lighting to carry out their duties.

4.10. Competing Vehicles shall have front and rear lighting, brake lights, and direction indicator lights in working order.

4.11. Reflective identification numbers must be displayed in three places: on the forward and each side of the Vehicles . The side numbers must be adequately illuminated and displayed on a flat vertical surface. Practice / Qualifying Practice

4.12. Should the Event include a period at night each Driver must be required to Practice both in respect of the daylight period and the night-time period of Practice . In addition to daylight Practice at least one half-hour of Practice must be at night.

4.13. ‘Night’ is deemed to have occurred 30 minutes after sunset.

5. Bad Weather Racing

5.1. Rain: No specific requirement is specified regarding Track drainage, but when a Track is resurfaced whether wholly or partially sufficient camber should be incorporated to provide for water to run off.

5.2. Any significant accumulation of or standing water on the Track surface will make the cancellation of racing probable.

5.3. Fog: When visibility is obscured between any two adjacent Flag Marshal Posts , Racing or Practice must be stopped and abandoned if there is no reasonable prospect of conditions improving within two hours.

5.4. Snow and Ice: The following areas must be free of all snow and ice before racing can commence:

a. The Track including verges either up to the safety bank or for a width of 3m whichever is the lesser. b. The Paddock , the Pits and communication roads. 5.5. Where Course verges are cleared any snow must not be piled into banks.

5.6. When a Track is snow or icebound an inspection must be made 24 hours before the start of official Practice to decide whether the Event will be cancelled or postponed.

5.7. If an adverse decision is taken the ASN and the ASN Steward and the Competitors and the media must be notified.

CHAPTER 10 CIRCUITS AND VENUES Appendix 7 - Guidance Notes on Dealing with Oil

1.1. Oil deposits on a track are generally caused in three ways:

From the fine spray caused by leakage on the pressure side of an oil system or from a badly fitting oil tank cap.

a.

b.

An accumulation of droppings from free flow oil systems used on motorcycle-type engines or from overflows.

c.

As a mass of oil caused by the sudden emptying of a sump or tank. This is usually restricted to a relatively small area.

1.2. Where there is only a film of oil on the track surface then a fine dusting of a suitable absorbent material or neutraliser should be applied to the affected area.

1.3. Where there is oil on the track this should be soaked up using a suitable absorbent material or neutraliser. 1.4. This can be spread upwind of the oil film using a small shovelful.

1.5. The absorbent material should be scattered along the line of the oil then brushed across the line. Discolouration of the material will occur within a minute or two so that Officials can note the action taking place.

1.6. On no account should large amounts of material be used as this can clog the track surface when it hardens and in addition can itself cause a minor dust storm.

1.7. Where there is a mass of oil on the track, this should be soaked up using sawdust or other suitable absorbent material.

1.8. This material must be carefully swept up and a quantity of fresh suitable absorbent material or neutraliser then brushed into the area to kill the film left after removal of the material.

1.9. The suitable absorbent material or neutraliser used must be dry and reasonably new.

1.10. Oil spillage in Pits / Paddock / Scrutineering / Parc Ferme areas should be managed by the deployment of spill kits.

Motorsport UK 2025 National Competition Rules Chapter 10 Appendix 7 - Guidance Notes on Dealing with Oil 367

Emergency and Medical Services ( Units & Equipment )

CHAPTER 11 – EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT )

The following Appendices to this Chapter apply: App.1 Rescue Units App.2 Stage Safety Units (SSU) App.3 Medical Cars App.4 Recovery Units App.5 Fire Tenders App.6 Race Medical Centre App.7 Kart Circuit Medical Centre App.8 Basic First Aid Kit – Rally Doctors App.9 Charts and Tables

Medical practice is dynamic and susceptible to amendment. For that reason, the full ASN requirements of Emergency and Medical Services are included within the Emergency and Medical Services Guidance Document on the ASN Website.

1. General

1.1. The Emergency and Medical Services Guidance Document has regulatory status and forms an integral part of the NCR (the ‘ Guidance Document’).

1.2. All Emergency Vehicles are Licensed based on their suitability for the particular tasks required of them and the equipment carried being as detailed in the appropriate section of App.9 Table 1.

1.3. All units and equipment when deployed at an Event must be of appropriate specification and kept serviceable, clean, tidy and in a hygienic condition.

1.4. Where appropriate and as required by the equipment manufacturer test certificates and consumables are to be in date. When required, tests and servicing must be undertaken either by the manufacturer or a manufacturer approved agent. Evidence (test certificates, labels, seals etc) must be available for inspection on the Vehicle at the Event.

1.5. Where Emergency Vehicles are used for an Event on a Public Highway they must be road legal and conform with all applicable legislation.

1.6. Where Emergency Vehicles are transported to an Event that does not use the Public Highway or if such Vehicle is kept permanently and used exclusively at a fixed Venue they are not required to be road legal but they must be maintained in serviceable working order in accordance with the manufacturer ’s specifications.

1.7. Blue warning lights if fitted must have a means of isolation so that when travelling on the Public Highway they cannot be operated from within the cabin unless fitted to a vehicle registered with and authorised by the relevant statutory authority.

1.8. All crew members must be seated on an appropriate seat and wearing a seatbelt when the Vehicle is in motion unless involved in treating a casualty during transport. In such times consideration should be given to stopping the Vehicle to allow procedures to be conducted.

1.9. Rescue Units, Technical Rescue Units, Stage Safety Units and Recovery Units are Licensed annually by the ASN . All ASN Registered Units must be assessed by an approved ASN Rescue or Recovery Assessor on application for their first ASN Registration . Subsequent assessments (and evidence of such assessments) shall be required within a 3-year period prior to each Licence renewal.

1.10. Commercial Rally Recovery Suppliers may be used in place of ASN Licensed Recovery Units. Commercial Recovery Units are not Licensed but when used they are considered to be Emergency

Motorsport UK 2025 National Competition Rules Chapter 11 - Emergency and Medical Services (Units and Equipment) 369

Vehicles and must comply with the applicable National Competition Rules.

1.11. Medical Cars are not Licensed but when declared as operational by the Chief Medical Officer are considered to be Emergency Vehicles and must comply with the applicable National Competition Rules.

1.12. An Ambulance , by law, must be registered with the DVLA (Driver and Vehicle licensing Authority) and be CQC Registered, where required, in order to transport a casualty to hospital. An Ambulance must have a minimum crew of two consisting of an appropriately qualified driver to transport a casualty under blue lights, an appropriately qualified attendant and must carry the appropriate equipment listed in App.9 Table 1.

1.13. The Chief Medical Officer along with the organiser of the event should be satisfied that the Ambulance is compliant with the requirements in Art.1.12 above.

1.14. Licensed Emergency Vehicles must only be accepted at Events when crewed by appropriately Licensed crew members in accordance with the requirements detailed in the NCR.

1.15. Organisers using Emergency Vehicles must be satisfied that the Licensed Vehicles and crews are correct for the type and status of the Event .

1.16. A Rescue Unit can operate independently of an Ambulance.

1.17. Rescue Units must be capable of transporting a casualty to the Medical Centre or Ambulance rendezvous point if requested. In case of force majeure they must be capable of transporting a casualty directly to hospital.

1.18. A Technical Rescue Unit must operate in conjunction with but not necessarily located with an Ambulance if it is replacing a Rescue Unit.

1.19. The positioning of Emergency Vehicles shall be indicated on the Track Licence or in the Event Safety Manual.

1.20. All Vehicles listed in this chapter should be safe and appropriate to drive on the Course and / or Track being used for the Event.

2. Actions at an Incident

2.1. Where Rescue Units or Stage Safety Units are involved and once the scene is safe, medical control will be established by the Doctor or ASN Registered Paramedic who will co-ordinate the extrication of any casualties with the Rescue Crew Chief .

2.2. ASN Licensed Recovery Units and crew may be required to support Rescue and / or Stage Safety Unit at an incident and should be prepared for this eventuality.

2.3. Should an incident require medical or rescue intervention then 2 metre and 5 metre working zones must be established. a.

Only those actively involved in the direct medical care and extrication of any casualties should be within 2 metres of the incident.

b.

Only medical and rescue personnel who are involved in the medical care or extrication activities should be within 5 metres of the incident.

c. Fire cover should be provided from the outer edge of the 5-metre working zone. d.

All other Marshals and Officials must remain outside of the 5-metre working zone unless specifically invited by the Chief Medical Officer or Rescue Crew Chief .

2.4. Where a recovery operation is required a Rescue Unit may need to attend the incident to provide safety cover and to assist the Recovery Crew .

3. Post-Incident

3.1. The Chief Medical Officer and Rescue Crew Chief will assist the Clerk of the Course and Event Secretary with completing the ASN Incident Pack and Event Documentation for transmission to the ASN Steward where appointed or to the Senior Official and in each case for transmission to the ASN Safety

Motorsport UK 2025 National Competition Rules Chapter 11 - Emergency and Medical Services (Units and Equipment) 370

Department .

3.2. Any person attending and / or assisting in the management of an Incident may be required to submit a written report in order to assist the ASN.

4. Crew Requirements 4.1. Licence applicant, upgrading and maintenance criteria are detailed in Ch.5A App.10 Table 1.1.

5. Licensing and Training 5.1. Licensing and Training criteria are detailed in Ch.5A App.10 Table 1.1.

6. Documentation and Information

6.1. Application Forms for Trainee and Full Licences , together with signature record cards, can be obtained from the ASN . Details of approved training and licence assessments will be advised to licence holders upon request.

7. Personal Protective Equipment

7.1. It is essential that motorsport emergency personnel ensure that they are using the appropriate Personal Protective Equipment (PPE) when performing pre-hospital tasks including technical extrication operations and that it provides the correct level of protection.

7.2. PPE that may be required for specific incident, Vehicle or equipment risks should be identified by a Dynamic Risk Assessment (DRA) on scene.

7.3. The following items of PPE are recommended:

a. b. c. d. e. f.

Flame-Resistant Clothing Helmets Face and Eye Protection Gloves Footwear Respiratory Protection

7.4. To ensure the correct level of protection is offered to personnel it is recommended that items of PPE meet as a minimum the standards set out in the Emergency and Medical Services Guidance Document.

8. Duties of the Chief Medical Officer 8.1. Where present, the Chief Medical Officer will:

Deploy their team, after consultation with the Chief Incident Officer / Safety Officer and the Clerk of the Course , to ensure adequate cover for the Event and that the medical centre if present has medical cover available.

a.

b.

Allocate duties to each member of the team, appropriate to their skills and qualifications. Ensure each team member is familiar with the Venue , facilities, equipment, the means of summoning assistance and casualty evacuation and removal.

Ensure each team member introduces themselves to the personnel they are stationed with, confirms and checks the means of communication and with Event control.

c.

Identify with the Clerk of the Course and Chief Incident Officer / Safety Officer the locations of emergency Vehicles at the Venue unless such is detailed on the relevant ASN Track Licence .

d.

e.

Ensure that all medical Vehicles and the Medical Centre (if applicable) are equipped to the ASN minimum specified level.

Motorsport UK 2025 National Competition Rules Chapter 11 - Emergency and Medical Services (Units and Equipment) 371

Ensure that medical staff have reliable communication with Event control and the public telephone service, either by radio, mobile phone or a nearby landline . Ascertain the telephone numbers for the designated hospitals and if possible the relevant NHS Ambulance Control.

f.

g.

Ensure that drivers of emergency Vehicles are aware of the need to preserve free access for their Vehicles to the track and that they know the evacuation routes for the Venue and the route(s) to the designated hospital(s). Ensure that all emergency Vehicle drivers are aware that they must not enter the track without explicit permission from Race or Rally Control . They should proceed only in the direction in which the Event is being run, unless explicitly otherwise instructed.

h.

Assure themselves in conjunction with the Clerk of the Course that any personnel located on evacuation routes are briefed as to their role in assisting casualty evacuation.

Report to the Clerk of the Course , via Event control, when they are satisfied that the medical facilities are appropriate for the event, raising any regulatory detail with the Clerk of Course and ASN Steward .

i.

8.2. If a Competitor is injured in an incident or presents with other medical conditions, such that it is considered inappropriate for them to continue to compete then the Chief Medical Officer , shall instruct the Clerk of the Course to Disqualify the Competitor from participation in the Event on medical and / or safety grounds. The Chief Medical Officer should pass a report to ASN Medical Department detailing the nature of the injuries/medical condition and inform the ASN Steward accordingly.

8.3. The appropriate local hospitals must be notified by the Event organisers of Venue , date and times of the meeting.

8.4. Ambulance Vehicles should be large enough to permit medical attendants to work without restriction.

8.5. The Chief Medical Officer shall complete the ASN Medical Statistics Form at the end of the Event and pass it to the ASN Steward in a timely manner to enable data collection as part of the ASN Risk Management Programme.

Motorsport UK 2025 National Competition Rules Chapter 11 - Emergency and Medical Services (Units and Equipment) 372

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 1 – Rescue Units

1. General

1.1. All Licensed Rescue Units are required to carry the appropriate minimum level of equipment listed in the App.9 Table 1.

2. Purpose

2.1. Rescue Units transport Licensed crew members and equipment and provide medical and / or extrication facilities following an incident as quickly and as safely as practical.

2.2. Additional Licensed Rescue Units can be specified on the Track / Venue Licence or in the Event Safety Manual if necessary.

3. Type of Vehicle

3.1. Rescue Unit Vehicles must be capable of carrying crew members and equipment at speeds appropriate for the surface of the course / Track being used.

3.2. For non-sealed surface courses the Vehicle must be able to maintain traction on such terrain.

4. Identification

4.1. Vehicles Licensed as Rescue Units must be clearly marked "RESCUE" and "AMBULANCE" as required and carry blue flashing warning lights and have any other visible role identification removed or covered.

4.2. “RESCUE” and “AMBULANCE” markings must be displayed in a durable manner and be of a minimum size of 79mm tall and be clearly in contrast with the background area.

4.3. “RESCUE” and “AMBULANCE” markings must be displayed on at least two sides of the Vehicle (front and back or each side).

4.4. Vehicles Licensed as Technical Rescue Units must be clearly marked “RESCUE” as required and carry blue flashing warning lights and have any other visible role identification removed or covered.

4.5. “RESCUE” markings must be displayed in a durable manner and be of a minimum size of 79mm tall and be clearly in contrast with the background area.

4.6. “RESCUE” markings must be displayed on at least two sides of the Vehicle (front and back or each side).

5. Crew 5.1. The minimum crew requirements are:

Rescue Unit : Race and Rallycross Events. Three fully Licensed Rescue crew members. Immediate medical support must be available from a Doctor or ASN Registered Paramedic who may attend independently.

a.

b. Technical Rescue Unit : Race and Rallycross Events . Three fully Licensed Rescue crew members. c.

Rescue Unit : Rally and Speed Events only. Two fully Licensed Rescue crew members. Immediate medical support must be available from a Doctor or ASN Registered Paramedic who may attend independently.

d. Technical Rescue Unit : Rally and Speed Events only. Two fully Licensed Rescue crew members.

5.2. At no time at any Event may the crew of a Licensed Rescue Unit include more than two Rescue trainees or Rescue Observers or combination thereof.

5.3. Licence application, upgrading and maintenance criteria are detailed in Ch.5A App.10 Table 1.1.

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 1 - Rescue Units 373

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 2 – Stage Safety Units (SSU)

1. General

1.1. All Stage Safety Units are required to carry the appropriate minimum level of equipment listed in App.9 Table 1.

2. Purpose

2.1. Stage Safety Units transport Licensed and / or Registered crew and equipment to an incident at a Rally or Event not on the Public Highway for the purpose of rendering the scene safe and to provide immediate medical care.

3. Type of Vehicle

3.1. The Stage Safety Unit should be a car, an estate car or a car derived van with tyres suitable for the terrain and with underbody protection.

4. Identification

4.1. The Vehicle must be clearly marked “STAGE SAFETY UNIT” or “SSU” and carry blue or amber flashing warning lights and have any other visible role identification removed or covered.

4.2. “STAGE SAFETY UNIT” or “SSU” markings must be displayed in a durable manner and be of a minimum size of 79mm tall and be clearly in contrast with the background area.

4.3. “STAGE SAFETY UNIT” or “SSU” markings must be displayed on at least two sides of the vehicle (front and back or each side).

5. Crew

5.1. The crew will consist of a minimum of two fully Licensed Rescue Crew members, one of whom may be replaced by a Doctor or ASN Registered Paramedic .

5.2. Whilst there is a requirement to carry medical equipment, this should only be accessed and used by suitably qualified personnel.

5.3. An additional person may be carried but if that person is a trainee Rescue Licence holder they may use no more than two Stage Safety Unit duty signatures for the purpose of upgrading their Licence.

5.4. Licence application, upgrading and maintenance criteria are detailed in Ch.5A App.10 Table 1.1 .

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 2 - Stage Safety Units (SSU) 374

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 3 – Medical Cars

1. General 1.1. All Medical Cars are required to carry the appropriate minimum level of equipment listed in App.9 Table 1.

2. Purpose

2.1. Medical Cars transport Licensed and / or Registered crew and equipment to an incident at a Race or Speed Event to provide immediate medical care.

3. Type of Vehicle

3.1. The Medical Cars should be of a type that is safe and appropriate to drive on the course / Track being used for the Event.

3.2. Medical Cars must be capable of safely carrying crew members and equipment at speeds appropriate for the surface of the course / Track.

3.3. For non-sealed surface courses the Vehicle must be able to maintain traction over such terrain.

4. Identification

4.1. The Vehicle must be clearly marked “MEDICAL” or “DOCTOR” and carry blue flashing warning lights and have any other visible role identification removed or covered.

4.2. “MEDICAL” or “DOCTOR” markings must be displayed in a durable manner and be clearly in contrast with the background area.

4.3. “MEDICAL” or “DOCTOR” markings must be displayed on at least two sides of the vehicle (front and back or each side).

5. Crew

5.1. The crew will consist of a minimum of two persons. It is recommended the crew should consist of a Doctor and ASN Registered Paramedic , however a minimum of one Doctor or one ASN Registered Paramedic must always be present. In all cases the crew must be acceptable to the Chief Medical Officer .

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 3 - Medical Cars 375

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 4 – Recovery Units

1. General

1.1. All Licensed Recovery Units are required to carry the appropriate minimum level of equipment listed in App.9 Table 1.

2. Purpose 2.1. Recovery Units are primarily to provide for the recovery of Vehicles .

3. Types of Vehicle 3.1. Either:

a.

A four-wheel drive equipped with an 8000lb (3.6 tons) or higher capacity Vehicle mounted winch that has the capability by Vehicle mounted or towed equipment to execute the suspended towing or transport of a Vehicle ; or

a rear-wheel drive Vehicle equipped with dual rear wheels and a rear mounted spectacle lift and an 8000lb (3.6 tons) or higher capacity Vehicle mounted winch. It is strongly recommended that such Vehicles are equipped with a limited slip or locking rear differential.

b.

3.2. Recovery Units may attend events without towed equipment to execute the suspended towing of a Vehicle where this is permitted within these Regulations and by the Organisers of the Event .

4. Identification

4.1. The Vehicle must be clearly marked “RECOVERY” and carry amber flashing warning lights and have any other visible role identification removed or covered.

4.2. “RECOVERY” markings must be displayed in a durable manner and be of a minimum size of 79mm tall and be clearly in contrast with the background area.

4.3. “RECOVERY” markings must be displayed on at least two sides of the vehicle (front and back or each side).

5. Crew

5.1. The crew must consist of a minimum of two Licensed operators, at least one of whom must hold a full Recovery Crew Licence .

5.2. Licence application, upgrading and maintenance criteria are detailed in Ch.5A App.10 Table 1.1.

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 4 - Recovery Units 376

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 5 – Fire Tenders

1. General 1.1. All new Fire Tenders should comply with the guidance in this section. 1.2. All Fire Tenders are required to carry the appropriate minimum level of equipment listed in App.9 Table 1.

2. Purpose 2.1. Fire Tenders transport crew and equipment to the scene of an incident.

2.2. The Fire Tender Vehicle and crew fight any fire present and isolate the Driver from the fire until the Driver can get to safety and then endeavour to, in most instances, extinguish the fire completely.

3. Types of Vehicle

3.1. Fire Tender Vehicles must be capable of safely carrying crew and equipment at speeds appropriate for the surface of the Competition Course / Track.

3.2. For non-sealed surface courses the Vehicle must be able to maintain traction over such terrain.

4. Identification 4.1. The Vehicle must be clearly marked "FIRE" and carry blue flashing warning lights.

4.2. “FIRE” markings must be displayed in a durable manner and be of a minimum size of 79mm tall and be clearly in contrast with the background area.

4.3. “FIRE” markings must be displayed on at least two sides of the vehicle (front and back or each side).

5. Crew

5.1. The crew shall consist of two people who must hold at least a Grade 2 ASN Marshal Registration or a Rescue Licence. The crew must be experienced at driving on a Competition Course / Track and be familiar with the operation of all equipment carried on the Vehicle .

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 5 - Fire Tenders 377

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 6 – Race Medical Centre

1. General 1.1. The circuit Medical Committee should ensure that the Medical Centre is properly equipped and maintained.

1.2. It is essential that proper patient records are kept and that procedures for the safe disposal of potentially hazardous waste material, including dressings, contaminated clothing, syringes, needles and sharps, are in place.

1.3. The risk of cross-infection must be addressed (e.g. by wearing gloves, aprons and goggles). Disposable equipment should be used where possible and sterility ensured at all times.

1.4. Records must be kept of the use of all drugs and fluids (including quantities and expiry dates) and equipment maintained according to appropriate service schedules. All equipment is at all times to be of appropriate specification and kept serviceable, clean, tidy and in a hygienic condition.

1.4.1 Where appropriate and as required by the manufacturer, test certificates and consumables are to be ‘in date’. When required, tests and servicing must be undertaken either by the manufacturer or a manufacturer approved agent. Good quality copies of current certificates must be available within the Medical Centre .

1.5. The following list of equipment, fluids, drugs, dressings etc. is considered to be the minimum requirement for a Medical Centre . However, it is essential that individual doctors equip themselves with the drugs and equipment they judge necessary.

1.5.1 All equipment must be checked, serviced and stored according to the manufacturer ’s recommendations. There should be sufficient equipment and drugs for the immediate resuscitation of a minimum of two patients.

2. Equipment and Drugs 2.1. Resuscitation

• Oropharyngeal airways (eight assorted sizes 2, 3 and 4)

• Suction apparatus mains, battery or hand operated capable of 300mm Hg suction with reservoir not less than 350ml or overflow system with catheters and wide bore suction

• Self-inflating manual resuscitator with facemask and O2 reservoir

• O2 supply (min size F1360 litres) and spare with reducing valves, flowmeters as necessary

• O2 tubing and masks

• Laryngoscopes x 2 with spare batteries and bulbs

• Endotracheal tubes cuffed x 6 (sizes 6.0mm to 9.0mm)

• Nasopharyngeal tubes x 3 (assorted sizes)

• Entonox with appropriate on demand delivery system (NB storage regulations)

• IV cannulae (six assorted sizes 1.0 to 2.0mm)

• IV administration sets x 6

• Pressure infusor

• Assorted syringes and needles.

• IV cannulae 14G, 16G 18G 20G at least 12 of each and appropriate Paediatric sizes to ensure sufficient numbers are available for the event

• Saline 0.9% (or equivalent) (1000ml x 8): under the direction of a Medical Officer

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 6 - Race Medical Centre 378

Surgical

• Appropriate equipment to secure a surgical airway

Miscellaneous

• Casualty immobiliser (vacuum mattress)

2.2. Monitoring and diagnostic

• Sphygmomanometer aneroid/mercury (for latter consider regulations re Hg spillage)

• Wave Form Capnography capability

• Non-invasive Blood Pressure Monitor

• Pulse oximeter

• Defibrillator with leads, electrodes pads/gel

• ECG

• Thermometer

• Blood glucose estimation kit. 2.3. Splints and Dressings

• Large field dressings x 10

• Bandages and adhesive tape in assorted sizes

• Sterile non-adhesive and adhesive wound dressings

• Burn dressings and supply of sterile transparent bags assorted sizes

• Semi rigid cervical collars (assorted x 4)

• Splints. 2.4. Drugs: it is mandatory that the following be available as a minimum requirement.

• Cardiac arrest emergency drugs, according to the current UK Resuscitation Council Guidance

• A supply of parenteral analgesics. 2.5. Surgical

• Chest drainage kit

• Cricothyrotomy / Cricothyroidatomy kit

• Minor op sterile pack with needle holder, scissors, artery forceps, scalpel and blades

• Suture materials

• Skin Antiseptic 2.6. Miscellaneous

• Scoop stretcher

• Casualty immobilser (vacuum mattress)

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 6 - Race Medical Centre 379

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 7 – Kart Circuit Medical Centre

1 . This must comprise a room large enough to accommodate a single bed for the observation and treatment of a single casualty. As a minimum it must be equipped with first aid equipment as required under HSE Code of Practice ACOP 1997 for organisations of 21 to 50 people, including an eye wash station with 2 x 500ml of sterile saline solution, a set of stiff neck extraction collars, including paediatric sizes, and portable resuscitation equipment.

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 7 - Kart Circuit Medical Centre 380

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 8 – Basic First Aid Kit – Rally Doctors

1. The following items are recommended to be carried by Rally Doctors in an appropriately assembled portable kit: a. As listed in Medical Car equipment excluding chest drain kit and the following additional items:

• Sterile eyewash 2 sachets

• Protective goggles

• Survival blanket x 2

• Blanket x 2

• In addition a flashing blue beacon, an identifying tabard where required, appropriate protective clothing, incident report forms (x10) and a powerful torch are considered necessary. b.

A comprehensive list of drugs is not listed however the individual Doctor is expected to carry those drugs that they feel are necessary and a supply of analgesic drugs for parenteral and oral administration.

c.

Any further drugs and equipment that may be deemed to be appropriate by way of specialist expertise are the responsibility of the individual Doctor .

d.

It is recommended that any doctor regularly involved in Rally medicine should seriously consider acquiring a ASN frequency radio set.

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 8 - Basic First Aid Kit - Rally Doctors 381

CHAPTER 11 EMERGENCY AND MEDICAL SERVICES (UNITS AND EQUIPMENT) Appendix 9 – Charts and Tables

Table 1 EMERGENCY VEHICLE EQUIPMENT REQUIREMENTS

Radio equipment - Rally 81.575MHz FM / 81.5375MHz FM. The supply of equipment using alternative radio frequencies is the responsibility of the organising club

* * * * * * *

Appropriate personal protective equipment for each crew member * * * * * * * Tabard for identification of Crew Chief at incident scenes * * Vehicle powered lighting and torches * * * * * Environmental Spill Kit – Medium * * * * *

NOTE: Blue warning lights must be fitted with a means of isolation so that when travelling on the Public Highway they cannot be operated from within the cabin unless fitted to a vehicle registered with and authorised by the relevant statutory authority.

Firefighting Equipment

Fire extinguisher containing not less than 6kg of extinguishing product suitable for extinguishing vehicle fires

1 2 2 2 4 2

Fire-resistant blanket (1m x 1m minimum) * * * * R

Minimum 50 litres AFFF with foam generating capability or appropriate equivalent - Existing Fire Tenders only

*

300 litres water in tanks with integral mixing ability to support AFFF foam generation or the use of appropriate equivalent. Where other pre-mixed firefighting media are in use as an alternative to AFFF, the integral mixing ability may be disregarded if not required

R

2 Beaters for grass fires R 1 Broom R R * R

Technical Equipment

1 General tool kit to include AF and metric spanners, screwdrivers, sockets, hex keys, “Torx” and other drivers etc to aid access to vehicle

* * * *

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 9 - Charts and Tables 382

1 Powered ram (and extensions if required to reach a minimum extended length of 1200mm)

* *

Powered hydraulic pump and appropriate hoses (unless powered cutters and spreaders are battery operated)

* *

Vehicle Mounted Winch - Minimum Capacity 8000lb (3.6 tonnes) The winch needs to be mounted to the recovery unit either by permanent fixing or a rated receiver hitch which is capable of handling the capacity of the winch in any situation it may be used.

*

A minimum of 28 metres (92 ft) of winch cable – Minimum capacity 8000lb (3.6 tonnes)

*

Winch cable extensions to a minimum of 28 metres, where event terrain would require long which distances. – Minimum Capacity 8000lb (3.6 tonnes)

*

1 set rated chain brothers, 2 metres per leg (SWL 2.12 tonnes - 7mm chain minimum)

*

Electric and Hybrid Vehicle Equipment

Gloves (Class 0) (inc. cotton inner and leather outer) - One pair per Crew member

* *

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 9 - Charts and Tables 383

Arc Face Shield (Class 0) (Could be replaced with a suitable helmet and visor) - One per Crew member

* *

Truck Racing Equipment

Equipment as per the Truck Racing provisions in the current Appendix H to the FIA Sporting Code must be available at the Event

FIA and International Events

Equipment as per the provisions in the current Appendix H to the FIA Sporting Code must be available at the Event

Medical Equipment

Resuscitation drugs in accordance the current UK Resuscitation Council / JRCALC clinical guidelines

* *

Drugs for Rapid Sequence Induction and difficult airway management Q

A selection of analgesic drugs - inhaled, parenteral and oral (to be supplied and carried by the doctor or paramedic)

* * Q

1 Portable entonox set and 1 spare entonox cylinder * * *

Other drugs eg GTN spray, Aspirin, antibiotics etc, see current JRCALC clinical guidelines for guidance

* *

‘i-gel’ Supraglottic airways (in sizes 2, 3, 4 & 5) plus catheter mount and lubricant

* * * * *

Endotracheal Tubes in a range of sizes including sizes 6.0, 7.0 and 8.0 plus catheter mount, lubricant, method for securing a tube, 20ml syringe, bougies/introducers, HEPA filter and capnography that complies with current requirements from the Royal College of Anaesthetists

Q

Q

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 9 - Charts and Tables 384

Equipment suitable for managing a difficult airway including video laryngoscope

Q

1 Portable oxygen set (900 litres in not more than 3 cylinders). Regulator to be capable of delivering 15 litres/min

* * * * *

Supply of non-rebreathing oxygen masks, both adult and paediatric * * * * *

Supply of oxygen masks and cannulas to include nebulising mask, both adult and paediatric

* * *

Equipment to allow decompression of a pneumothorax * * Q Q Q Surgical airway kit ('mini trach') or equivalent * R Q Q Paediatrics

Consideration should be given to carrying equipment suitable for treating paediatric patients such as BVM, airway adjuncts, IV cannulae, intraosseous access and extrication collars

* R R

A comprehensive selection of dressings including large sizes (eg 20cm x 40cm) and bandages

* * * * *

Circulation 4 Intravenous giving sets * * * * * 12 Intravenous cannulae (three each 14, 16, 18, 20) and suitable fixation * * * * *

4 x 500ml 0.9% Sodium Chloride or equivalent (to be supplied and carried by the doctor or paramedic)

* * * *

1 Vacuum mattress * *

A supply of cling film and unused clean plastic bags and waterjel or equivalent dressings for the treatment of burns

* * * * * * *

5 litres clean, fresh tap water * * * * * * Sterile solution for eye irrigation * * * * * * * 2 Survival blankets * * * * *

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 9 - Charts and Tables 385

1 Stretcher (ambulance cot type) * * Disposable surgical gloves and appropriate medical PPE * * * * * Disposable sharps container and plastic bag for clinical waste * * * * * Patient Report Forms * * * * *

First Aid Kit in compliance with requirements for less then 25 employees (small) as defined by the current BS8599-1

* * * * *

NOTES : In the table the following markings are used: * denotes mandatory R Q indicates a Recommended item indicates mandatory equipment for use by a suitably qualified and experienced doctor or paramedic A number in the Unit column indicate the quantity of mandatory items where different units have different requirements

From 1st January 2025 it is recommended that the following should be complied with:

In accordance with EN 13204 or equivalent (NFPA 1936), the minimum requirement for the powered large cutter, combi tool and powered large spreader should be:

BC 150 G or BK 150 H for the cutter CC/CK 150 H for the combi tool Min. spreading force (EN 13204) = 40 kN for the spreader

NOTE: It is not acceptable to carry only a combi tool. If the combi tool is being carried as a replacement for either the powered large cutter or the powered large spreader then it must comply with the appropriate requirement above.

Equipment must be maintained in line with manufacturers guidelines and industry best practice. When required, tests and servicing must be undertaken either by the manufacturer or a manufacturer approved agent. Evidence (test certificates, labels, seals etc) must be available for inspection on the vehicle or at the event.

All consumable items must be 'in date' and in undamaged manufacturers packaging where appropriate.

For all categories of vehicle there should be adequate supplies of compressed air (in cylinders or from a compressor) and/or hydraulic power supply for powering the range of equipment carried on the vehicle. Where equipment is battery powered an adequate supply of charged batteries is to be available.

Motorsport UK 2025 National Competition Rules Chapter 11 Appendix 9 - Charts and Tables 386
