Motorsport UK NCR 2026 #11 | Page 523

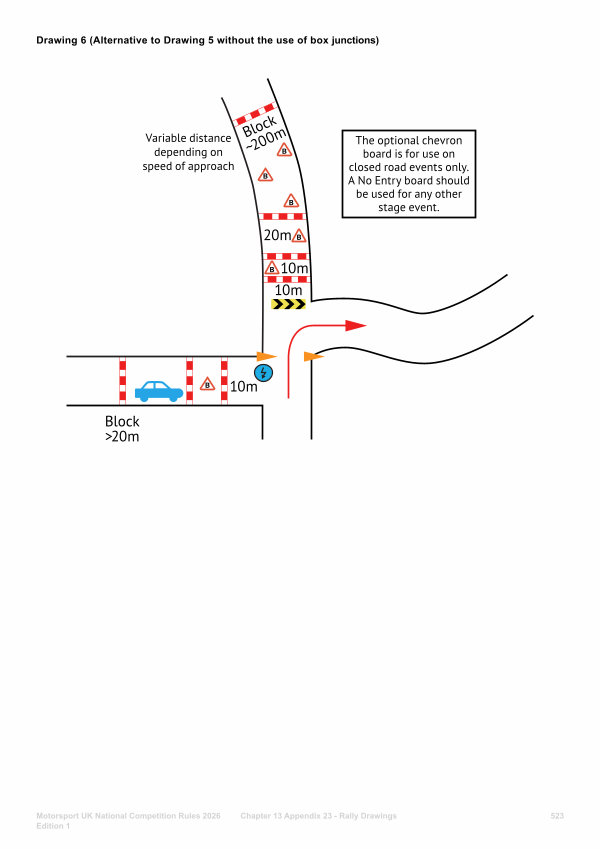

Drawing 6( Alternative to Drawing 5 without the use of box junctions)
Variable distance depending on speed of approach
Block ~ 200m
B
B
B
The optional chevron board is for use on closed road events only. A No Entry board should be used for any other stage event.
20m
B
B
10m 10m
B
10m
Block > 20m
Motorsport UK National Competition Rules 2026 Edition 1
Chapter 13 Appendix 23- Rally Drawings 523
