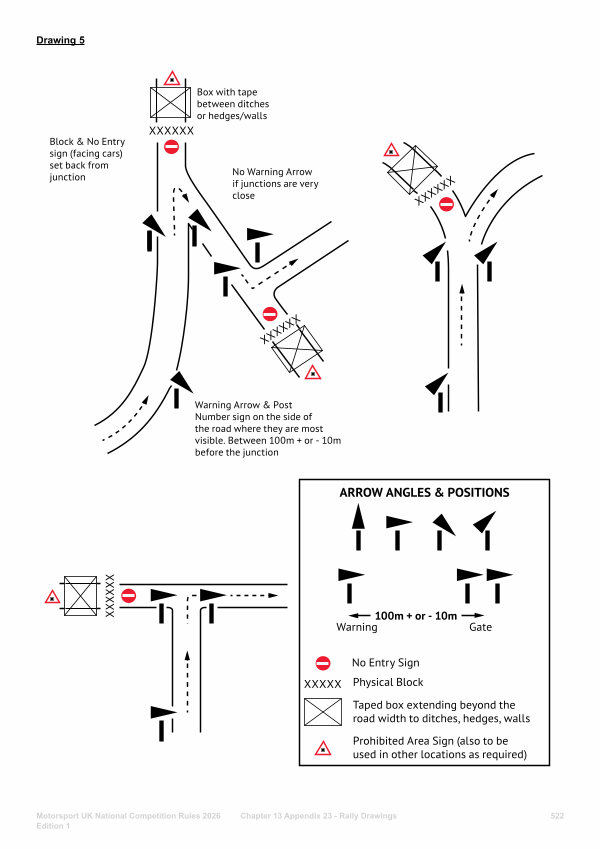

Drawing 5
Block & No Entry sign( facing cars) set back from junction
XXXXXX
Box with tape between ditches or hedges / walls
No Warning Arrow if junctions are very close
XXXXXX
XXXXXX
Warning Arrow & Post Number sign on the side of the road where they are most visible. Between 100m + or- 10m before the junction
ARROW ANGLES & POSITIONS
XXXXXX
100m + or- 10m Warning
Gate
XXXXX
No Entry Sign Physical Block
Taped box extending beyond the road width to ditches, hedges, walls
Prohibited Area Sign( also to be used in other locations as required)
Motorsport UK National Competition Rules 2026 Edition 1
Chapter 13 Appendix 23- Rally Drawings 522
