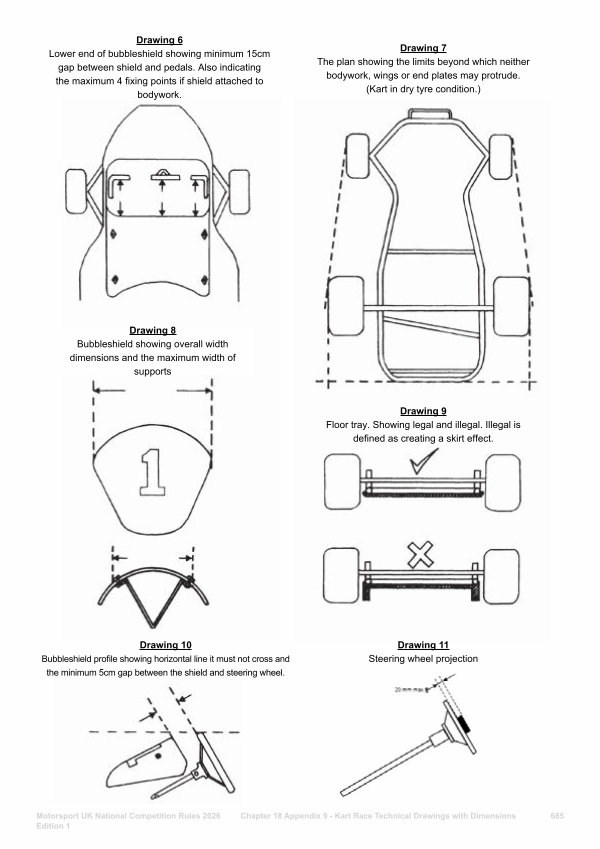

Drawing 6 Lower end of bubbleshield showing minimum 15cm gap between shield and pedals. Also indicating the maximum 4 fixing points if shield attached to bodywork.
Drawing 7 The plan showing the limits beyond which neither bodywork, wings or end plates may protrude.( Kart in dry tyre condition.)
Drawing 8 Bubbleshield showing overall width dimensions and the maximum width of supports
Drawing 9 Floor tray. Showing legal and illegal. Illegal is defined as creating a skirt effect.
Drawing 10 Bubbleshield profile showing horizontal line it must not cross and the minimum 5cm gap between the shield and steering wheel.
Drawing 11 Steering wheel projection
